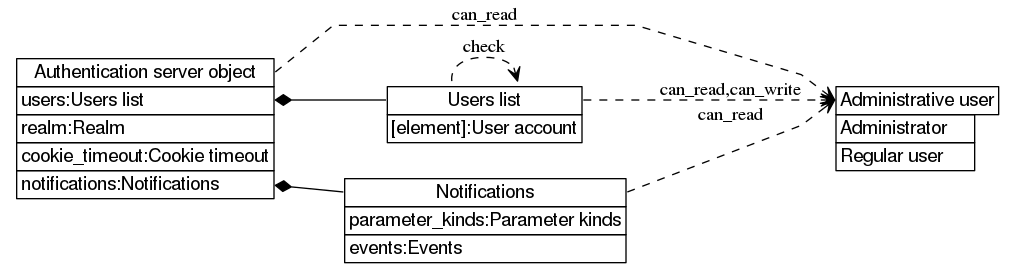

object	auth/
Object representing the authentication server configuration

Retrieving the value is denied if not administrative user

This object contains the following items:

users	Users list
realm	Realm
cookie_timeout	Cookie timeout
notifications	Notifications

Sample requests read command:

print(requests.get('http://192.168.0.100/restapi/auth/',auth=auth,headers=headers).json())

⇒

<...>

Sample JS request write command:

request.put({url:"auth/",body:<...>});

Browse more samples

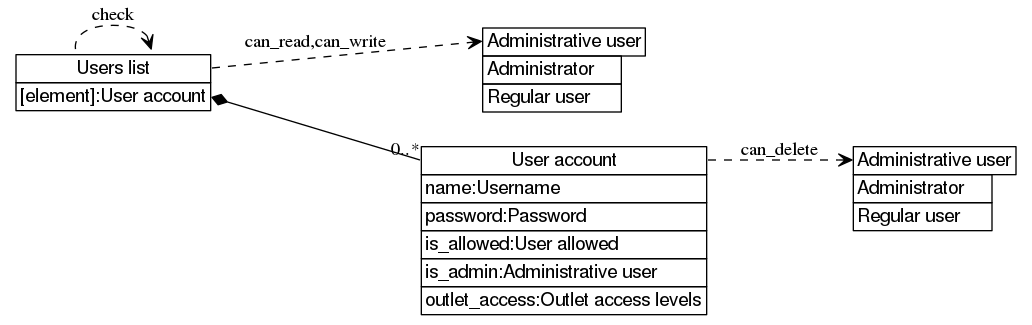

Users list

array	auth/users/
List of user accounts

Retrieving the value is denied if not administrative user

Changing the value is denied if not administrative user

This array represents a value in persistent storage.

This array represents an unordered set (order of its elements doesn't matter, and each value should not be supplied more than once).

This array contains User account elements.

Sample curl read command:

curl --digest -u admin:1234 -H "Accept: application/json" "http://192.168.0.100/restapi/auth/users/"

⇒

Sample uom library write command:

uom.auth.users={{is_allowed=true,name="admin",outlet_access={true,true,true,true,true,true,true,true},password="/n5Sy)-\\W0i"},{is_admin=false,is_allowed=true,name="tom",outlet_access={true,false,false,false,false,true,true,false,true,true,true,false,true,false,false,true,true,true,false,true,false,false,false,false,false,false,false,true,false,true,true,false},password="$F6Nt[\"`!Z!nkXT]"},{is_allowed=false,name="dick",outlet_access={false,true,true,false,true,false,true,true,true,false,false,true,false,false,true,false,true,true,false,false,true,true,true,false,false,false,false,false,true,false,true,false},password="~OW4W/RmEH4D;_jC"},{is_admin=false,is_allowed=true,name="harry",outlet_access={false,false,false,false,true,true,true,false,true,true,false,true,false,true,true,false,false,false,false,true,false,false,false,false,true,false,false,true,true,false,false,true},password="JTs:bw_3T/e,W85"}}

Browse more samples

User account

object	auth/users/N/
User account configuration

Removing the object from its parent collection is denied if administrative user

This object contains the following items:

name	Username
password	Password
is_allowed	User allowed
is_admin	Administrative user
outlet_access	Outlet access levels

Sample curl deletion command (note that :user_account_index is a URL template argument):

curl --digest -u admin:1234 -H "X-CSRF: x" -X DELETE -H "Accept: application/json" "http://192.168.0.100/restapi/auth/users/:user_account_index/"

Sample uom library read command (note that _user_account_index is a variable):

print(uom.dump(uom.auth.users[_user_account_index]))

⇒

Browse more samples

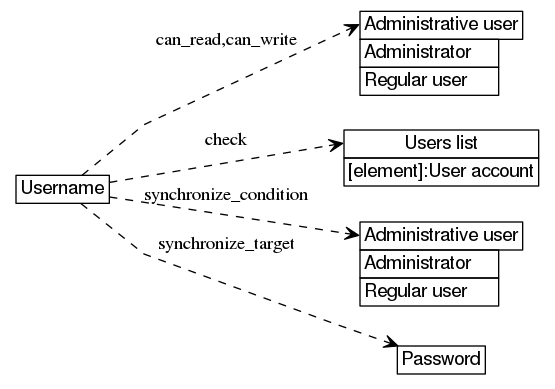

User account: Username

string	auth/users/N/name/
Username

The value is subject to the following constraints: all of the following is true:

the value matches ^[a-zA-Z0-9]*$
name members of all values of users list are distinct

Retrieving the value is denied if not administrative user

Changing the value is denied if not administrative user

This string represents a value in persistent storage.

Write operations must supply the current value of password if administrative user

Sample uom library read command (note that _user_account_index is a variable):

print(uom.dump(uom.auth.users[_user_account_index].name))

⇒

"dick"

Sample requests write command (note that _user_account_index is a variable):

requests.put('http://192.168.0.100/restapi/auth/users/'+str(_user_account_index)+'/name/',auth=auth,headers=headers,json='harry')

Browse more samples

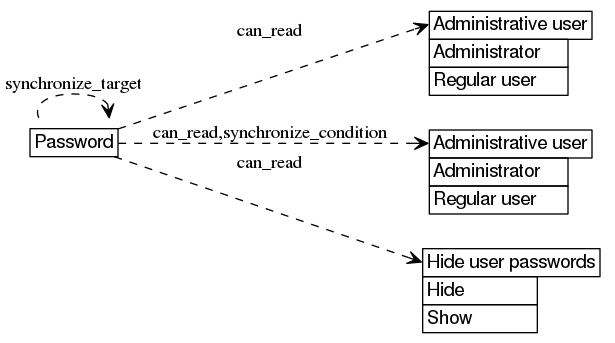

User account: Password

string	auth/users/N/password/
Password

The value is subject to the following constraints: the value matches ^[ -~]*$

Retrieving the value is denied if any of the following is true:

Using the string as a field for indexing into the grandparent collection is denied

This string represents a value in persistent storage.

This string should be displayed in a secure manner.

Write operations must supply the current value of the value if administrative user

Sample requests read command (note that _user_account_index is a variable):

print(requests.get('http://192.168.0.100/restapi/auth/users/'+str(_user_account_index)+'/password/',auth=auth,headers=headers).json())

⇒

'b?T)8K|=%<d|?O'

Sample JS request read command (note that _user_account_index is a variable):

request.get({url:"auth/users/"+_user_account_index.toString()+"/password/"},function(error,response,body) {console.log(body)});

⇒

"7Z19,aAg)WB%'"

Browse more samples

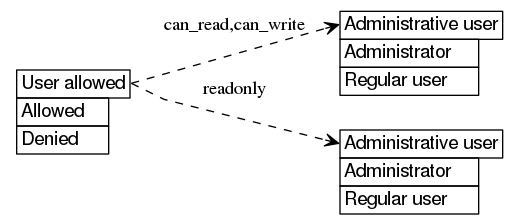

User account: User allowed

sum (boolean)	auth/users/N/is_allowed/
Flag indicating whether user is allowed or denied

Retrieving the value is denied if not administrative user

Changing the value is denied if not administrative user

This sum does not support direct modification if administrative user.

This sum represents a value in persistent storage.

This sum can assume the following values:

constant true	Allowed	The user is allowed to log in
constant false	Denied	The user is denied login

Sample CLI write command (note that user_account_index is a variable):

uom set "auth/users/${user_account_index}/is_allowed" "true"

Sample uom library write command (note that _user_account_index is a variable):

uom.auth.users[_user_account_index].is_allowed=false

Browse more samples

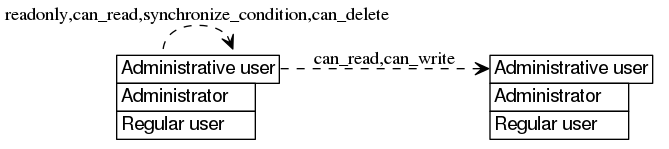

User account: Administrative user

sum (boolean)	auth/users/N/is_admin/
Flag indicating whether the user is an administrator

Retrieving the value is denied if not administrative user

Changing the value is denied if not administrative user

This sum does not support direct modification.

This sum represents a value in persistent storage.

This sum can assume the following values:

constant true	Administrator	The user is an administrator
constant false	Regular user	The user is a regular user

Sample JS request read command (note that _user_account_index is a variable):

request.get({url:"auth/users/"+_user_account_index.toString()+"/is_admin/"},function(error,response,body) {console.log(body)});

⇒

false

Sample uom library read command (note that _user_account_index is a variable):

print(uom.dump(uom.auth.users[_user_account_index].is_admin))

⇒

true

Browse more samples

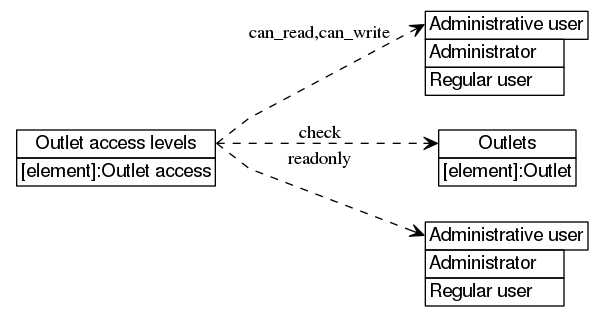

User account: Outlet access levels

array	auth/users/N/outlet_access/
Access levels per outlet

The value is subject to the following constraints: length of the value is equal to length of outlets

Retrieving the value is denied if not administrative user

Changing the value is denied if not administrative user

This array is composite, i.e. is modified as a whole.

This array does not support direct modification if administrative user.

This array represents a value in persistent storage.

This array contains Outlet access elements.

Sample requests outlet access creation command (note that _user_account_index is a variable):

requests.post('http://192.168.0.100/restapi/auth/users/'+str(_user_account_index)+'/outlet_access/',auth=auth,headers=headers,json=True)

Sample JS request write command (note that _user_account_index is a variable):

request.put({url:"auth/users/"+_user_account_index.toString()+"/outlet_access/",body:[true,true,true,true,false,true,false,false,false,false,true,true,true,true,true,false,false,true,false,false,false,false,true,true,true,true,false,true,false,true,false,false]});

Browse more samples

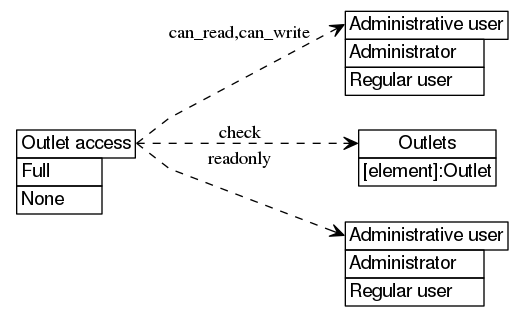

Outlet access

sum (boolean)	auth/users/N/outlet_access/N/
Access level for outlet by index

The value is subject to the following constraints: outlets[index of the value]

Retrieving the value is denied if not administrative user

Changing the value is denied if not administrative user

This sum is a part of a composite value which is modified as a whole.

This sum does not support direct modification if administrative user.

This sum represents a value in persistent storage.

This sum can assume the following values:

constant true	Full	Outlet state can be manipulated by the user
constant false	None	Outlet state cannot be neither seen nor manipulated by the user

Sample uom library write command (note that _user_account_index and _outlet_access_index are variables):

uom.auth.users[_user_account_index].outlet_access[_outlet_access_index]=false

Sample requests deletion command (note that _user_account_index and _outlet_access_index are variables):

requests.delete('http://192.168.0.100/restapi/auth/users/'+str(_user_account_index)+'/outlet_access/'+str(_outlet_access_index)+'/',auth=auth,headers=headers)

Browse more samples

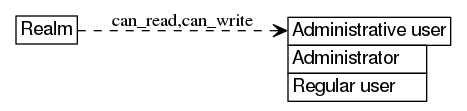

Realm

string	auth/realm/
The realm to be announced in authentication responses

Retrieving the value is denied if not administrative user

Changing the value is denied if not administrative user

This string represents a value in persistent storage.

Sample curl read command:

curl --digest -u admin:1234 -H "Accept: application/json" "http://192.168.0.100/restapi/auth/realm/"

⇒

[]

Sample CLI read command:

uom get "auth/realm"

⇒

[]

Browse more samples

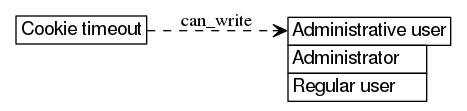

Cookie timeout

number	auth/cookie_timeout/
The amount of time for which a cookie is valid

The value represents time, the standard unit of which is the second (s).

The value is subject to the following constraints: the value is greater than 0

Changing the value is denied if not administrative user

This number represents a value in persistent storage.

Sample requests read command:

print(requests.get('http://192.168.0.100/restapi/auth/cookie_timeout/',auth=auth,headers=headers).json())

⇒

Sample CLI write command:

uom set "auth/cookie_timeout" "30000"

Browse more samples

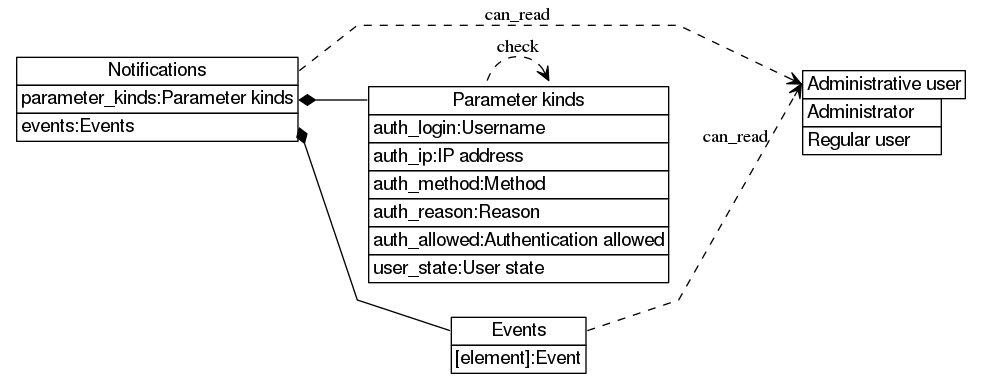

Notifications

object	auth/notifications/
Authentication-related notifications

Retrieving the value is denied if not administrative user

This object does not support direct modification.

This object contains the following items:

parameter_kinds	Parameter kinds
events	Events

Sample curl read command:

curl --digest -u admin:1234 -H "Accept: application/json" "http://192.168.0.100/restapi/auth/notifications/"

⇒

...

Sample requests read command:

print(requests.get('http://192.168.0.100/restapi/auth/notifications/',auth=auth,headers=headers).json())

⇒

<...>

Browse more samples

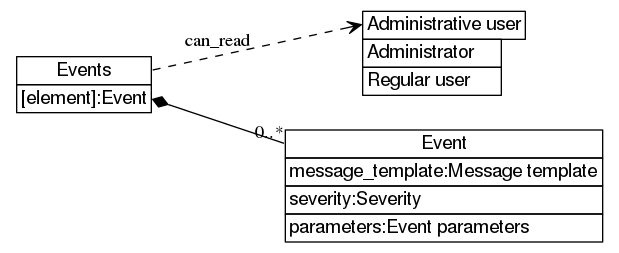

Events

map	auth/notifications/events/
Event templates

Retrieving the value is denied if not administrative user

This map is composite, i.e. is modified as a whole.

This map does not support direct modification.

This map contains Event elements.

Creating elements in this collection is not supported.

Sample JS request read command:

request.get({url:"auth/notifications/events/"},function(error,response,body) {console.log(body)});

⇒

<...>

Sample curl read command:

curl --digest -u admin:1234 -H "Accept: application/json" "http://192.168.0.100/restapi/auth/notifications/events/"

⇒

...

Browse more samples

Notifications: Parameter kinds

object	auth/notifications/parameter_kinds/
Kinds of event parameters

This object does not correspond to an actual resource.

This object contains the following items:

auth_login	Username
auth_ip	IP address
auth_method	Method
auth_reason	Reason
auth_allowed	Authentication allowed
user_state	User state

Username

string	auth/notifications/parameter_kinds/auth_login/
The name of the user

IP address

string	auth/notifications/parameter_kinds/auth_ip/
The IP address of the user

The value is subject to the following constraints: the value matches ^(([0-9]|[1-9][0-9]|1[0-9]{2}|2[0-4][0-9]|25[0-5]).){3}([0-9]|[1-9][0-9]|1[0-9]{2}|2[0-4][0-9]|25[0-5])$

Method

string	auth/notifications/parameter_kinds/auth_method/
The authentication method

Reason

string	auth/notifications/parameter_kinds/auth_reason/
The reason for authentication decision

Authentication allowed

sum (boolean)	auth/notifications/parameter_kinds/auth_allowed/
Authentication decision result

This sum can assume the following values:

constant true	Allowed	The user is allowed to log in
constant false	Denied	The user is denied to log in

User state

sum (variant)	auth/notifications/parameter_kinds/user_state/
The state of the user

This sum can assume the following values:

constant true	Existing	The user exists
constant false	Deleted	The user has been deleted
constant "new"	New	The user has been created

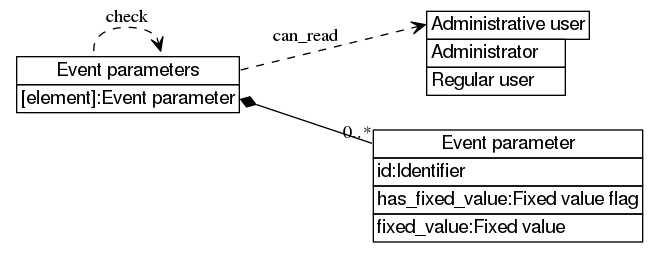

Event parameters: Event parameter

object	auth/notifications/events/S/parameters/N/
Properties of a parameter associated with the event

This object is a part of a composite value which is modified as a whole.

This object contains the following items:

id	Identifier

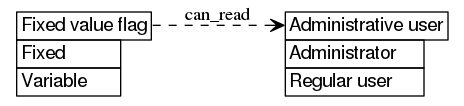

has_fixed_value	Fixed value flag

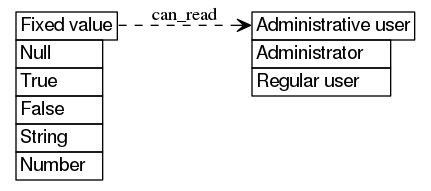

fixed_value	Fixed value

Sample curl read command (note that :event and :event_parameter_index are URL template arguments):

curl --digest -u admin:1234 -H "Accept: application/json" "http://192.168.0.100/restapi/auth/notifications/events/:event/parameters/:event_parameter_index/"

⇒

{"fixed_value":null,"has_fixed_value":false,"id":"auth_reason"}

Sample requests read command (note that _event and _event_parameter_index are variables):

print(requests.get('http://192.168.0.100/restapi/auth/notifications/events/'+_event+'/parameters/'+str(_event_parameter_index)+'/',auth=auth,headers=headers).json())

⇒

{'fixed_value': None, 'has_fixed_value': False, 'id': 'auth_method'}

Browse more samples

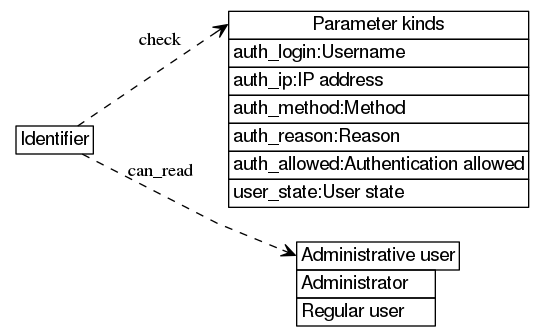

Identifier

string	auth/notifications/events/S/parameters/N/id/
Parameter identifier

The value is subject to the following constraints: parameter kinds[the value]

Retrieving the value is denied if not administrative user

This string is a part of a composite value which is modified as a whole.

This string does not support direct modification.

Sample curl read command (note that :event and :event_parameter_index are URL template arguments):

curl --digest -u admin:1234 -H "Accept: application/json" "http://192.168.0.100/restapi/auth/notifications/events/:event/parameters/:event_parameter_index/id/"

⇒

"auth_ip"

Sample uom library read command (note that _event and _event_parameter_index are variables):

print(uom.dump(uom.auth.notifications.events[_event].parameters[_event_parameter_index].id))

⇒

"auth_reason"

Browse more samples

Fixed value flag

sum (boolean)	auth/notifications/events/S/parameters/N/has_fixed_value/
Flag indicating that the parameter's value for this event is fixed

Retrieving the value is denied if not administrative user

This sum is a part of a composite value which is modified as a whole.

This sum does not support direct modification.

This sum can assume the following values:

constant true	Fixed	The value is fixed
constant false	Variable	The value is variable

Sample CLI read command (note that event and event_parameter_index are variables):

uom get "auth/notifications/events/${event}/parameters/${event_parameter_index}/has_fixed_value"

⇒

false

Sample requests read command (note that _event and _event_parameter_index are variables):

print(requests.get('http://192.168.0.100/restapi/auth/notifications/events/'+_event+'/parameters/'+str(_event_parameter_index)+'/has_fixed_value/',auth=auth,headers=headers).json())

⇒

False

Browse more samples

Fixed value

sum (variant)	auth/notifications/events/S/parameters/N/fixed_value/
Fixed parameter value for this particular event

Retrieving the value is denied if not administrative user

This sum is a part of a composite value which is modified as a whole.

This sum does not support direct modification.

This sum can assume the following values:

constant null	Null	Null
constant true	True	True
constant false	False	False
string	String	This string
number	Number	This number

Sample JS request read command (note that _event and _event_parameter_index are variables):

request.get({url:"auth/notifications/events/"+_event+"/parameters/"+_event_parameter_index.toString()+"/fixed_value/"},function(error,response,body) {console.log(body)});

⇒

null

Sample uom library read command (note that _event and _event_parameter_index are variables):

print(uom.dump(uom.auth.notifications.events[_event].parameters[_event_parameter_index].fixed_value))

⇒

null

Browse more samples

Events: Event

object	auth/notifications/events/S/
Event template

This object is a part of a composite value which is modified as a whole.

This object contains the following items:

message_template	Message template
severity	Severity
parameters	Event parameters

Sample uom library write command (note that _event is a variable):

uom.auth.notifications.events[_event]={message_template={"deleted user ",0},parameters={{fixed_value=null,has_fixed_value=false,id="auth_login"},{fixed_value=false,has_fixed_value=true,id="user_state"}},severity=6}

Sample CLI read command (note that event is a variable):

uom get "auth/notifications/events/${event}"

⇒

{"severity":6,"message_template":["deleted user ",0],"parameters":[{"fixed_value":null,"has_fixed_value":false,"id":"auth_login"},{"fixed_value":false,"has_fixed_value":true,"id":"user_state"}]}

Browse more samples

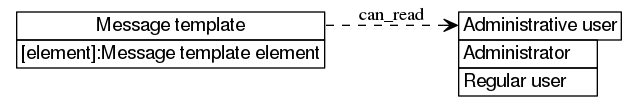

Message template

array	auth/notifications/events/S/message_template/
Template for human-readable message generation

Retrieving the value is denied if not administrative user

This array is a part of a composite value which is modified as a whole.

This array does not support direct modification.

This array contains Message template element elements.

Creating elements in this collection is not supported.

Sample CLI read command (note that event is a variable):

uom get "auth/notifications/events/${event}/message_template"

⇒

[0,"@",1," session closed"]

Sample requests read command (note that _event is a variable):

print(requests.get('http://192.168.0.100/restapi/auth/notifications/events/'+_event+'/message_template/',auth=auth,headers=headers).json())

⇒

['login denied for ', 0, '@', 1, ' (', 2, '): ', 3]

Browse more samples

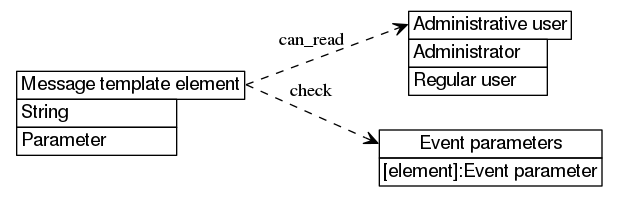

Message template element

sum (variant)	auth/notifications/events/S/message_template/N/
Element of human-readable message template

Retrieving the value is denied if not administrative user

This sum is a part of a composite value which is modified as a whole.

This sum does not support direct modification.

This sum can assume the following values:

string	String	Fixed string
number	Parameter	Index of message parameter to insert	event parameters[the value]

Sample JS request read command (note that _event and _message_template_element_index are variables):

request.get({url:"auth/notifications/events/"+_event+"/message_template/"+_message_template_element_index.toString()+"/"},function(error,response,body) {console.log(body)});

⇒

Sample requests read command (note that _event and _message_template_element_index are variables):

print(requests.get('http://192.168.0.100/restapi/auth/notifications/events/'+_event+'/message_template/'+str(_message_template_element_index)+'/',auth=auth,headers=headers).json())

⇒

' ('

Browse more samples

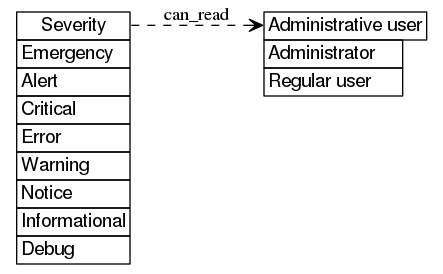

Severity

sum (enumerated number)	auth/notifications/events/S/severity/
Severity rating assigned to the event

Retrieving the value is denied if not administrative user

This sum is a part of a composite value which is modified as a whole.

This sum does not support direct modification.

This sum can assume the following values:

constant 1	Emergency	Treat the event as an emergency
constant 2	Alert	Treat the event as an alert
constant 3	Critical	Treat the event as critical
constant 4	Error	Treat the event as an error
constant 5	Warning	Treat the event as a warning
constant 6	Notice	Treat the event as a notice
constant 7	Informational	Treat the event as informational
constant 8	Debug	Treat the event as debugging-related

Sample JS request read command (note that _event is a variable):

request.get({url:"auth/notifications/events/"+_event+"/severity/"},function(error,response,body) {console.log(body)});

⇒

Sample CLI read command (note that event is a variable):

uom get "auth/notifications/events/${event}/severity"

⇒

Browse more samples

Event parameters

array	auth/notifications/events/S/parameters/
Additional data associated with the event

Retrieving the value is denied if not administrative user

This array is a part of a composite value which is modified as a whole.

This array does not support direct modification.

This array contains Event parameter elements.

Creating elements in this collection is not supported.

Sample curl read command (note that :event is a URL template argument):

curl --digest -u admin:1234 -H "Accept: application/json" "http://192.168.0.100/restapi/auth/notifications/events/:event/parameters/"

⇒

[{"fixed_value":null,"has_fixed_value":false,"id":"auth_login"},{"fixed_value":null,"has_fixed_value":false,"id":"auth_ip"}]

Sample CLI read command (note that event is a variable):

uom get "auth/notifications/events/${event}/parameters"

⇒

[{"fixed_value":null,"has_fixed_value":false,"id":"auth_login"},{"fixed_value":"new","has_fixed_value":true,"id":"user_state"}]

Browse more samples
