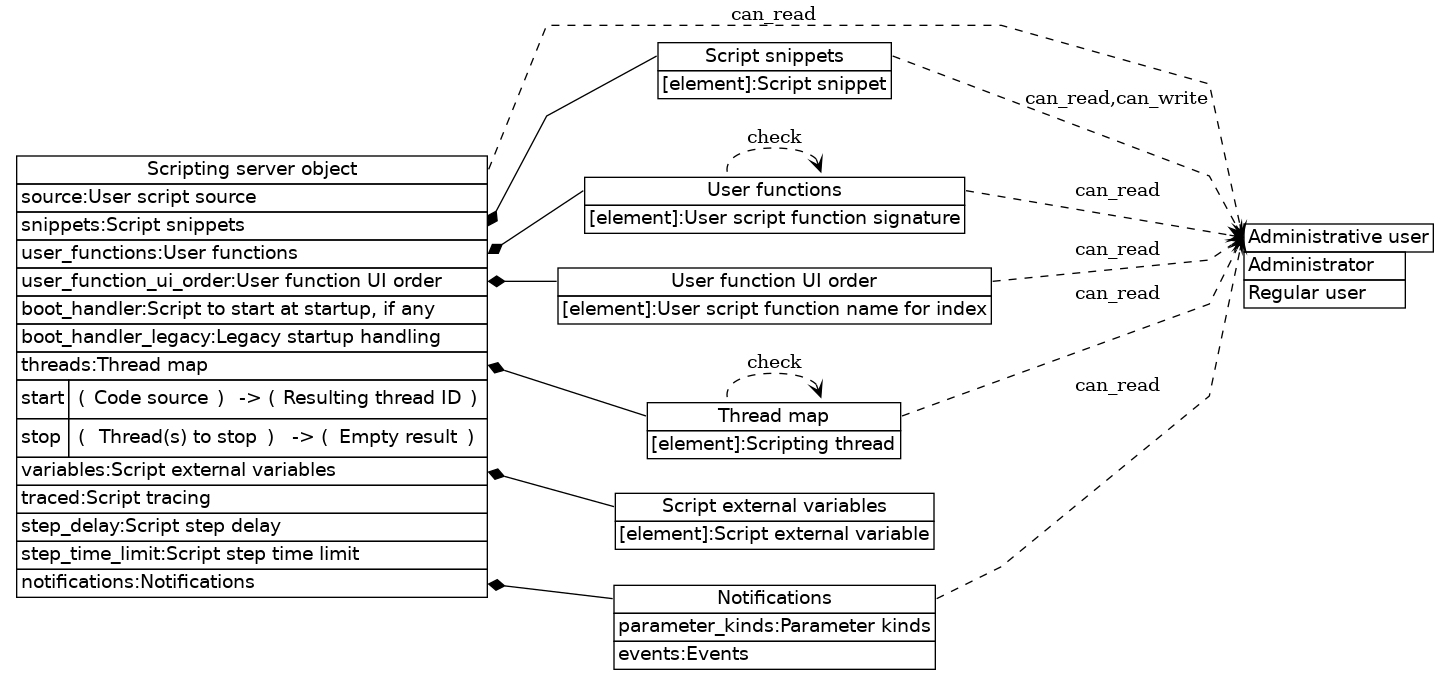

object	script/
Object representing the scripting server state and configuration

Retrieving the value is denied if not administrative user

This object contains the following items:

Sample curl read command:

curl --digest -u admin:1234 -H "Accept: application/json" "http://192.168.0.100/restapi/script/"

⇒

...

Sample requests read command:

print(requests.get('http://192.168.0.100/restapi/script/',auth=auth,headers=headers).json())

⇒

<...>

Browse more samples

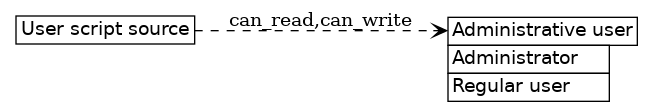

User script source

string	script/source/
Source of the user script from which user functions are extracted

The value contains Lua source (has native MIME type text/x-lua).

Retrieving the value is denied if not administrative user

Changing the value is denied if not administrative user

This string represents a value in persistent storage.

Sample CLI read command:

uom get "script/source"

⇒

"function cycle_appliance(...)\n  ...\nend\n"

Sample requests write command:

requests.put('http://192.168.0.100/restapi/script/source/',auth=auth,headers=headers,json='function enable_machines(...)\n  ...\nend\nfunction cycle_gadgets(...)\n  ...\nend\nfunction disable_appliances(...)\n  ...\nend\n')

Browse more samples

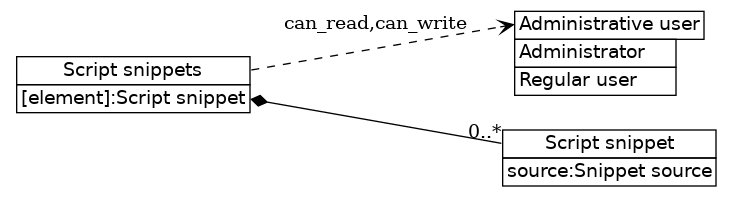

Script snippets

map	script/snippets/
Fragments of Lua code provided initially as samples or saved for later use

Retrieving the value is denied if not administrative user

Changing the value is denied if not administrative user

This map represents a value in persistent storage.

Changes to this map cannot be tracked.

This map contains Script snippet elements.

Sample requests write command:

requests.put('http://192.168.0.100/restapi/script/snippets/',auth=auth,headers=headers,json={'toggle_router_sample': {'source': 'function cycle_machine(...)\n  ...\nend\nfunction shut_down_machines(...)\n  ...\nend\nfunction shut_down_heaters(...)\n  ...\nend\nfunction shut_down_modem(...)\n  ...\nend\n'}})

Sample curl read command:

curl --digest -u admin:1234 -H "Accept: application/json" "http://192.168.0.100/restapi/script/snippets/"

⇒

Browse more samples

Script snippets: Script snippet

object	script/snippets/S/
User script snippet

This object contains the following items:

source

Snippet source

Sample uom library read command (note that _script_snippet is a variable):

print(uom.dump(uom.script.snippets[_script_snippet]))

⇒

{source="function shut_down_appliances(...)\
  ...\
end\
"}

Sample CLI deletion command (note that script_snippet is a variable):

uom remove "script/snippets/${script_snippet}"

Browse more samples

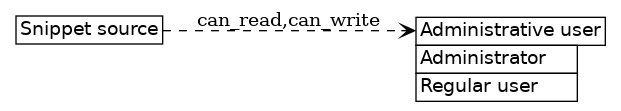

Snippet source

string	script/snippets/S/source/
Source of the snippet

The value contains Lua source (has native MIME type text/x-lua).

Retrieving the value is denied if not administrative user

Changing the value is denied if not administrative user

This string represents a value in persistent storage.

Changes to this string cannot be tracked.

Sample JS request read command (note that _script_snippet is a variable):

request.get({url:"script/snippets/"+_script_snippet+"/source/"},function(error,response,body) {console.log(body)});

⇒

"function enable_modem(...)\n  ...\nend\nfunction shut_down_modems(...)\n  ...\nend\nfunction energize_machine(...)\n  ...\nend\nfunction shut_down_machines(...)\n  ...\nend\n"

Sample uom library write command (note that _script_snippet is a variable):

uom.script.snippets[_script_snippet].source="function toggle_engines(...)\
  ...\
end\
function disable_machine(...)\
  ...\
end\
"

Browse more samples

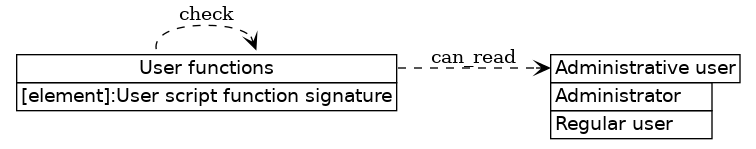

User functions

map	script/user_functions/
Mapping of user function names to their signatures

Retrieving the value is denied if not administrative user

This map is composite, i.e. is modified as a whole.

This map does not support direct modification.

This map can change as if by itself or indirectly because of other actions.

Changes to this map cannot be tracked.

This map contains User script function signature elements.

Creating elements in this collection is not supported.

Sample curl read command:

curl --digest -u admin:1234 -H "Accept: application/json" "http://192.168.0.100/restapi/script/user_functions/"

⇒

[]

Sample JS request read command:

request.get({url:"script/user_functions/"},function(error,response,body) {console.log(body)});

⇒

[]

Browse more samples

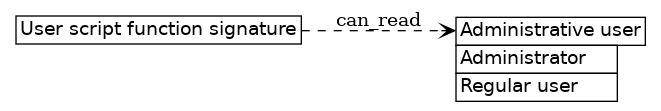

User script function signature

string	script/user_functions/S/
Indicates that the map key is a user script function, and provides a signature which may serve as a hint as to the function content

The value is subject to the following constraints: not index of the value matches ^(|.*|.*)$

Retrieving the value is denied if not administrative user

This string is a part of a composite value which is modified as a whole.

This string does not support direct modification.

Sample JS request read command (note that _user_script_function_signature is a variable):

request.get({url:"script/user_functions/"+_user_script_function_signature+"/"},function(error,response,body) {console.log(body)});

⇒

[]

Sample curl read command (note that :user_script_function_signature is a URL template argument):

curl --digest -u admin:1234 -H "Accept: application/json" "http://192.168.0.100/restapi/script/user_functions/:user_script_function_signature/"

⇒

[]

Browse more samples

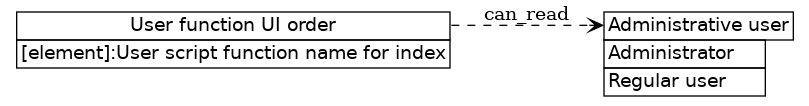

User function UI order

array	script/user_function_ui_order/
Preferred order of user functions when displayed to user

Retrieving the value is denied if not administrative user

This array is composite, i.e. is modified as a whole.

This array does not support direct modification.

This array can change as if by itself or indirectly because of other actions.

Changes to this array cannot be tracked.

This array contains User script function name for index elements.

Creating elements in this collection is not supported.

Sample requests read command:

print(requests.get('http://192.168.0.100/restapi/script/user_function_ui_order/',auth=auth,headers=headers).json())

⇒

['cycle_engine', 'shut_down_gadget']

Sample uom library read command:

print(uom.dump(uom.script.user_function_ui_order))

⇒

{"enable_gadgets","cycle_modem","enable_engines","energize_modems","cycle_engine"}

Browse more samples

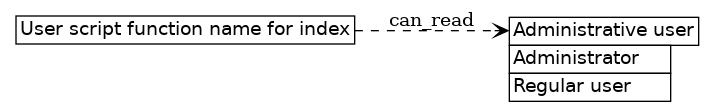

User script function name for index

string	script/user_function_ui_order/N/
Indicates that the preferred location of this user function in a list is the index in the array; may specify a nonexistent function

Retrieving the value is denied if not administrative user

This string is a part of a composite value which is modified as a whole.

This string does not support direct modification.

Sample JS request read command (note that _user_script_function_name_for_index_index is a variable):

request.get({url:"script/user_function_ui_order/"+_user_script_function_name_for_index_index.toString()+"/"},function(error,response,body) {console.log(body)});

⇒

"energize_appliances"

Sample CLI read command (note that user_script_function_name_for_index_index is a variable):

uom get "script/user_function_ui_order/${user_script_function_name_for_index_index}"

⇒

"toggle_gadget"

Browse more samples

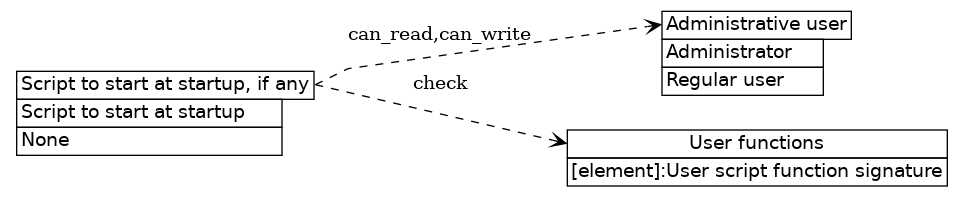

Script to start at startup, if any

sum (string)	script/boot_handler/
User scripting function to run at startup, if any

Retrieving the value is denied if not administrative user

Changing the value is denied if not administrative user

This sum represents a value in persistent storage.

This sum can change as if by itself or indirectly because of other actions.

This sum can assume the following values:

string	Script to start at startup	User scripting function to run at startup, with the startup reason as argument (or only at cold boot if configured to)	user functions[the value]
constant ""	None	Don't run any scripting function at startup

Sample requests read command:

print(requests.get('http://192.168.0.100/restapi/script/boot_handler/',auth=auth,headers=headers).json())

⇒

''

Sample requests write command:

requests.put('http://192.168.0.100/restapi/script/boot_handler/',auth=auth,headers=headers,json='')

Browse more samples

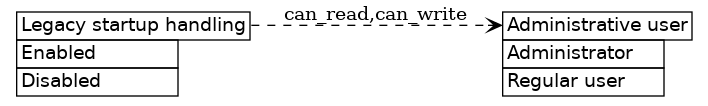

Legacy startup handling

sum (boolean)	script/boot_handler_legacy/
Run startup script only on cold boot and omit the argument

Retrieving the value is denied if not administrative user

Changing the value is denied if not administrative user

This sum represents a value in persistent storage.

This sum can assume the following values:

constant true	Enabled	The feature is enabled
constant false	Disabled	The feature is disabled

Sample uom library write command:

uom.script.boot_handler_legacy=false

Sample curl read command:

curl --digest -u admin:1234 -H "Accept: application/json" "http://192.168.0.100/restapi/script/boot_handler_legacy/"

⇒

true

Browse more samples

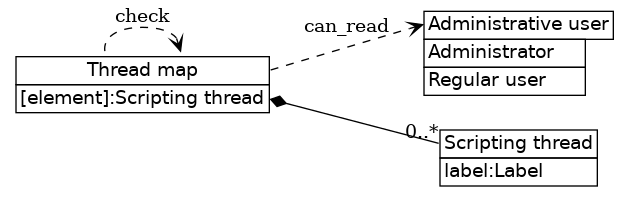

Thread map

map	script/threads/
Map of user scripting threads

Retrieving the value is denied if not administrative user

This map is composite, i.e. is modified as a whole.

This map does not support direct modification.

This map can change as if by itself or indirectly because of other actions.

Changes to this map cannot be tracked.

This map contains Scripting thread elements.

Creating elements in this collection is not supported.

Sample uom library read command:

print(uom.dump(uom.script.threads))

⇒

{["64"]={label="label of thread #64"}}

Sample CLI read command:

uom get "script/threads"

⇒

Browse more samples

Thread map: Scripting thread

object	script/threads/S/
User scripting thread status

This object is a part of a composite value which is modified as a whole.

This object contains the following items:

label

Label

Sample uom library write command (note that _scripting_thread is a variable):

uom.script.threads[_scripting_thread]={label="label of thread #45"}

Sample requests read command (note that _scripting_thread is a variable):

print(requests.get('http://192.168.0.100/restapi/script/threads/'+_scripting_thread+'/',auth=auth,headers=headers).json())

⇒

{'label': 'label of thread #22'}

Browse more samples

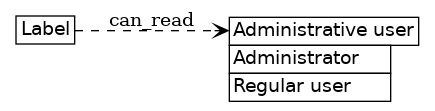

Label

string	script/threads/S/label/
User thread label

Retrieving the value is denied if not administrative user

This string is a part of a composite value which is modified as a whole.

This string does not support direct modification.

Sample uom library read command (note that _scripting_thread is a variable):

print(uom.dump(uom.script.threads[_scripting_thread].label))

⇒

"label of thread #51"

Sample JS request read command (note that _scripting_thread is a variable):

request.get({url:"script/threads/"+_scripting_thread+"/label/"},function(error,response,body) {console.log(body)});

⇒

"label of thread #16"

Browse more samples

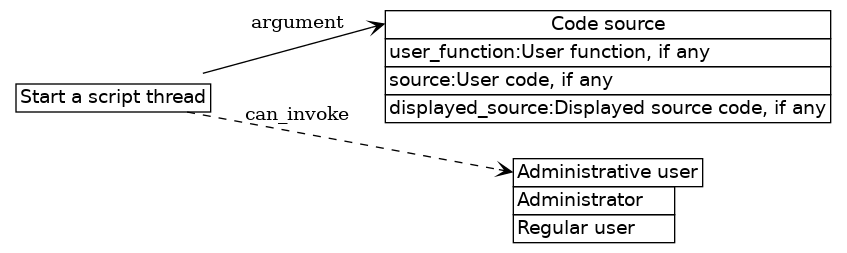

Start a script thread

call	script/start/
Start a user scripting thread

Performing the function call is denied if not administrative user

The call accepts the following arguments:

Code source: object "Code source"

The call returns the following results:

Resulting thread ID: string

Sample uom library invocation:

print(uom.dump(uom.script.start({displayed_source="Toggle modem",user_function="toggle_modem"})))

⇒

"18"

Sample JS request invocation:

request.post({url:"script/start/",body:[{"source":"fn(1,\"routers\",\"heaters\",\"machine\",\"router\")","user_function":"shut_down_contraptions"}]});

⇒

"53"

Browse more samples

Resulting thread ID

string	script/start/results: 1/
Identifier of the started thread

The value is subject to the following constraints: thread map[the value]

This string does not correspond to an actual resource.

Start a script thread: Code source

object	script/start/arguments: 1/
Source of the code to run

This object does not correspond to an actual resource.

This object contains the following items:

user_function	User function, if any
source	User code, if any
displayed_source	Displayed source code, if any

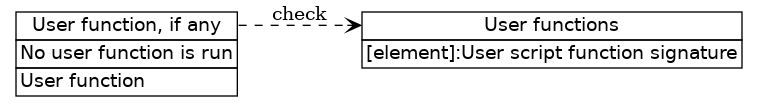

User function, if any

sum (optional string)	script/start/arguments: 1/user_function/
Name of user function to run, if any

This sum does not correspond to an actual resource.

This sum can assume the following values:

constant null	No user function is run	The source of code is not a user function
string	User function	Name of user function to run	user functions[the value]

User code, if any

sum (optional string)	script/start/arguments: 1/source/
Explicit code to run as user script (if user_function is not set or is an existing user script function), if any

This sum does not correspond to an actual resource.

This sum can assume the following values:

constant null	User function invocation	The user_function is invoked with no arguments
string	User code	Explicit code to run as user script (if user_function is not set or is an existing user script function)

Displayed source code, if any

sum (optional string)	script/start/arguments: 1/displayed_source/
Source code describing thread overview (doesn't have to be valid code), if any

This sum does not correspond to an actual resource.

This sum can assume the following values:

constant null	Use default	Display source, or user_function name
string	Displayed source code	Source code describing thread overview (doesn't have to be valid code)

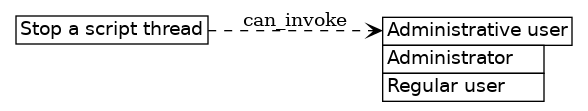

Stop a script thread

call	script/stop/
Stop a user scripting thread, or all user scripting threads

Performing the function call is denied if not administrative user

The call accepts the following arguments:

Thread(s) to stop: Thread ID or All threads

The call returns the following results:

Empty result: null

Sample CLI invocation:

uom invoke "script/stop" "\"82\""

⇒

null

Sample JS request invocation:

request.post({url:"script/stop/",body:["95"]});

⇒

null

Browse more samples

Thread(s) to stop

sum (string)	script/stop/arguments: 1/
Identifier of the thread to stop, or "all" to stop all threads

This sum does not correspond to an actual resource.

This sum can assume the following values:

string	Thread ID	Identifier of the thread to stop	thread map[the value]
constant "all"	All threads	Stop all threads

Empty result

constant null	script/stop/results: 1/
No additional information available

This constant does not correspond to an actual resource.

Script external variables

map	script/variables/
Elements of the script's external table

This map can change as if by itself or indirectly because of other actions.

This map contains Script external variable elements.

Sample curl read command:

curl --digest -u admin:1234 -H "Accept: application/json" "http://192.168.0.100/restapi/script/variables/"

⇒

{"contraption_state":true}

Sample JS request read command:

request.get({url:"script/variables/"},function(error,response,body) {console.log(body)});

⇒

{"heater_temperature":false,"engine_status":5,"heater_running":1,"heater_state":false}

Browse more samples

Script external variable

sum (variant)	script/variables/S/
Element of the script's external table

This sum can change as if by itself or indirectly because of other actions.

This sum can assume the following values:

constant true	True	True
constant false	False	False
string	String	This string
number	Number	This number

Sample CLI write command (note that script_external_variable is a variable):

uom set "script/variables/${script_external_variable}" "false"

Sample uom library read command (note that _script_external_variable is a variable):

print(uom.dump(uom.script.variables[_script_external_variable]))

⇒

false

Browse more samples

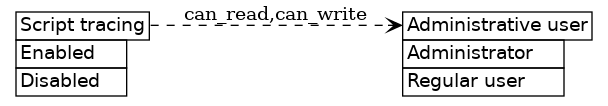

Script tracing

sum (boolean)	script/traced/
Perform step-by-step logging of script operation

Retrieving the value is denied if not administrative user

Changing the value is denied if not administrative user

This sum represents a value in persistent storage.

This sum can assume the following values:

constant true	Enabled	The feature is enabled
constant false	Disabled	The feature is disabled

Sample uom library read command:

print(uom.dump(uom.script.traced))

⇒

false

Sample requests write command:

requests.put('http://192.168.0.100/restapi/script/traced/',auth=auth,headers=headers,json=False)

Browse more samples

Script step delay

number	script/step_delay/
Delay after executing legacy scripting functions

The value represents time, the standard unit of which is the second (s).

The value is subject to the following constraints: the value is greater than 0

Retrieving the value is denied if not administrative user

Changing the value is denied if not administrative user

This number represents a value in persistent storage.

Sample CLI write command:

uom set "script/step_delay" "1"

Sample CLI read command:

uom get "script/step_delay"

⇒

Browse more samples

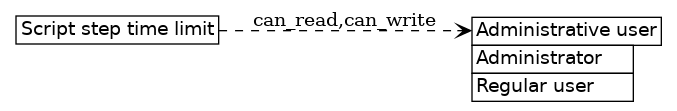

Script step time limit

number	script/step_time_limit/
Maximum amount of time a scripting thread is allowed to run uninterrupted

The value represents time, the standard unit of which is the second (s).

The value is subject to the following constraints: the value is greater than 0

Retrieving the value is denied if not administrative user

Changing the value is denied if not administrative user

This number represents a value in persistent storage.

Sample requests read command:

print(requests.get('http://192.168.0.100/restapi/script/step_time_limit/',auth=auth,headers=headers).json())

⇒

Sample CLI read command:

uom get "script/step_time_limit"

⇒

Browse more samples

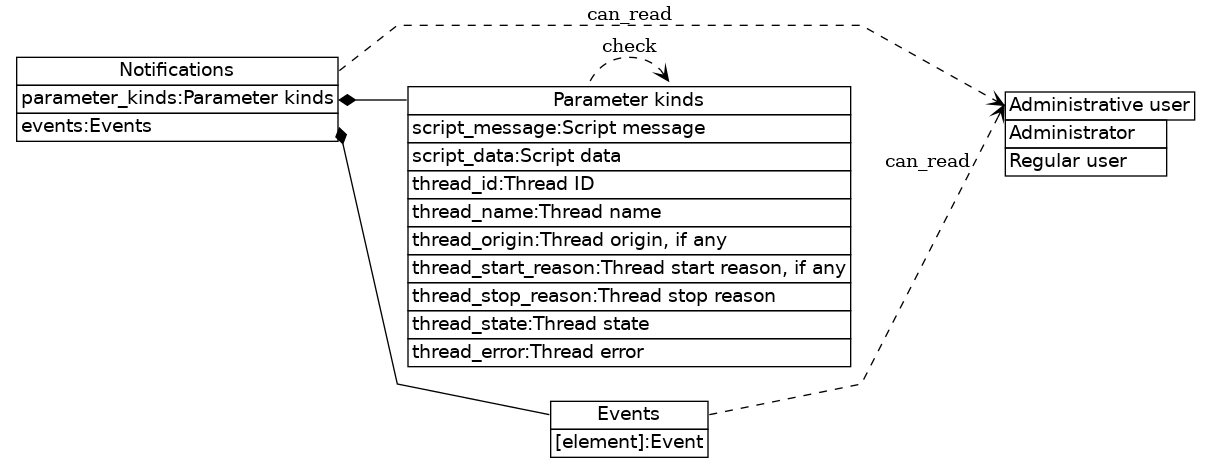

Notifications

object	script/notifications/
Scripting server notifications

Retrieving the value is denied if not administrative user

This object does not support direct modification.

This object contains the following items:

parameter_kinds	Parameter kinds
events	Events

Sample JS request read command:

request.get({url:"script/notifications/"},function(error,response,body) {console.log(body)});

⇒

<...>

Sample uom library read command:

print(uom.dump(uom.script.notifications))

⇒

<...>

Browse more samples

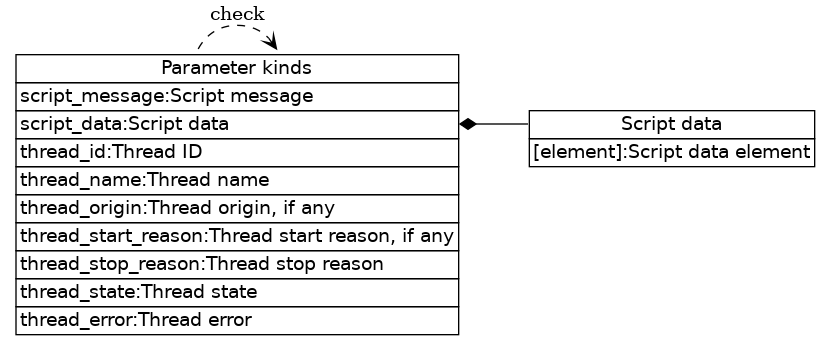

Parameter kinds

object	script/notifications/parameter_kinds/
Kinds of event parameters

This object does not correspond to an actual resource.

This object contains the following items:

script_message	Script message
script_data	Script data
thread_id	Thread ID
thread_name	Thread name
thread_origin	Thread origin, if any
thread_start_reason	Thread start reason, if any
thread_stop_reason	Thread stop reason
thread_state	Thread state
thread_error	Thread error

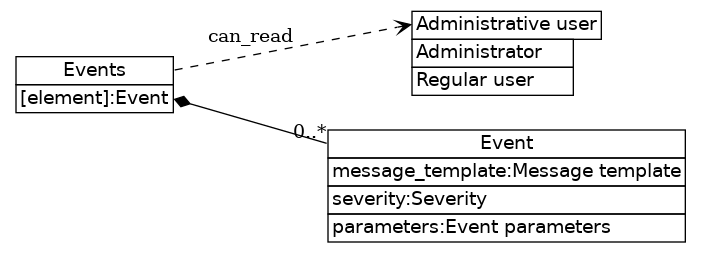

Events

map	script/notifications/events/
Event templates

Retrieving the value is denied if not administrative user

This map is composite, i.e. is modified as a whole.

This map does not support direct modification.

This map contains Event elements.

Creating elements in this collection is not supported.

Sample curl read command:

curl --digest -u admin:1234 -H "Accept: application/json" "http://192.168.0.100/restapi/script/notifications/events/"

⇒

...

Sample JS request read command:

request.get({url:"script/notifications/events/"},function(error,response,body) {console.log(body)});

⇒

<...>

Browse more samples

Parameter kinds: Script message

string	script/notifications/parameter_kinds/script_message/
Message for the script-generated event

Parameter kinds: Script data

map	script/notifications/parameter_kinds/script_data/
Data of the script-generated event

This map contains Script data element elements.

Script data element

sum (variant)	script/notifications/parameter_kinds/script_data/S/
Element of script-generated event data

This sum can assume the following values:

constant null	Null	Null
constant true	True	True
constant false	False	False
string	String	This string
number	Number	This number

Parameter kinds: Thread ID

string	script/notifications/parameter_kinds/thread_id/
Thread identifier

Parameter kinds: Thread name

string	script/notifications/parameter_kinds/thread_name/
Thread human-readable name

Parameter kinds: Thread origin, if any

sum (optional string)	script/notifications/parameter_kinds/thread_origin/
Origin of the thread, if any

This sum can assume the following values:

constant null	Unknown origin	Origin of this thread is not known
string	Thread origin	Origin of the thread

Parameter kinds: Thread start reason, if any

sum (optional string)	script/notifications/parameter_kinds/thread_start_reason/
Reason of the thread start, if any

This sum can assume the following values:

constant null	Unknown start reason	Reason of the thread start is not known
string	Thread start reason	Reason of the thread start

Parameter kinds: Thread stop reason

string	script/notifications/parameter_kinds/thread_stop_reason/
Reason of the thread stop

Parameter kinds: Thread state

sum (boolean)	script/notifications/parameter_kinds/thread_state/
Thread execution state

This sum can assume the following values:

constant true	Running	The thread is running
constant false	Stopped	The thread is stopped

Parameter kinds: Thread error

string	script/notifications/parameter_kinds/thread_error/
Thread execution error description

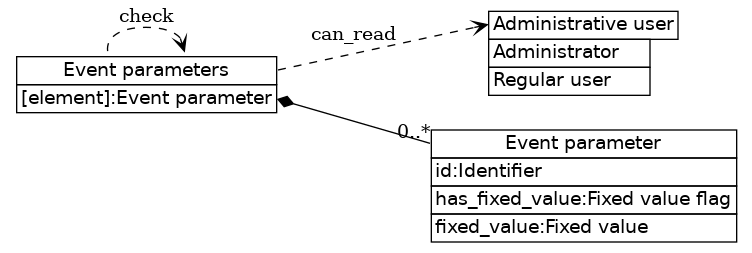

Event parameters: Event parameter

object	script/notifications/events/S/parameters/N/
Properties of a parameter associated with the event

This object is a part of a composite value which is modified as a whole.

This object contains the following items:

id	Identifier
has_fixed_value	Fixed value flag
fixed_value	Fixed value

Sample uom library write command (note that _event and _event_parameter_index are variables):

uom.script.notifications.events[_event].parameters[_event_parameter_index]={fixed_value=null,has_fixed_value=false,id="thread_id"}

Sample requests write command (note that _event and _event_parameter_index are variables):

requests.put('http://192.168.0.100/restapi/script/notifications/events/'+_event+'/parameters/'+str(_event_parameter_index)+'/',auth=auth,headers=headers,json={'fixed_value': False, 'has_fixed_value': True, 'id': 'thread_state'})

Browse more samples

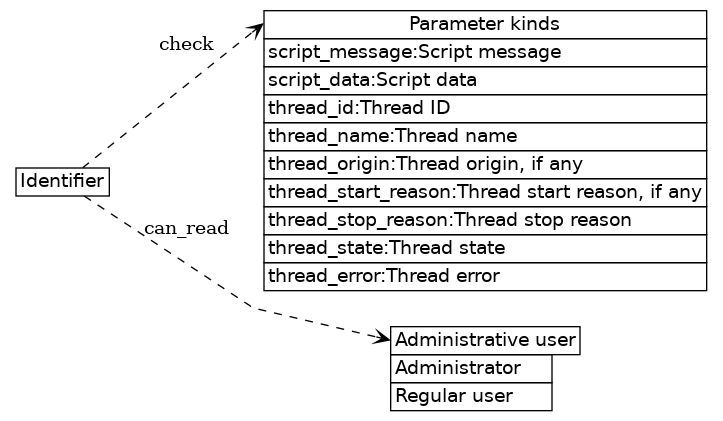

Identifier

string	script/notifications/events/S/parameters/N/id/
Parameter identifier

The value is subject to the following constraints: parameter kinds[the value]

Retrieving the value is denied if not administrative user

This string is a part of a composite value which is modified as a whole.

This string does not support direct modification.

Sample uom library read command (note that _event and _event_parameter_index are variables):

print(uom.dump(uom.script.notifications.events[_event].parameters[_event_parameter_index].id))

⇒

"thread_origin"

Sample CLI read command (note that event and event_parameter_index are variables):

uom get "script/notifications/events/${event}/parameters/${event_parameter_index}/id"

⇒

"thread_name"

Browse more samples

Fixed value flag

sum (boolean)	script/notifications/events/S/parameters/N/has_fixed_value/
Flag indicating that the parameter's value for this event is fixed

Retrieving the value is denied if not administrative user

This sum is a part of a composite value which is modified as a whole.

This sum does not support direct modification.

This sum can assume the following values:

constant true	Fixed	The value is fixed
constant false	Variable	The value is variable

Sample CLI read command (note that event and event_parameter_index are variables):

uom get "script/notifications/events/${event}/parameters/${event_parameter_index}/has_fixed_value"

⇒

false

Sample uom library read command (note that _event and _event_parameter_index are variables):

print(uom.dump(uom.script.notifications.events[_event].parameters[_event_parameter_index].has_fixed_value))

⇒

false

Browse more samples

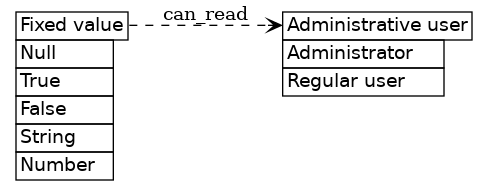

Fixed value

sum (variant)	script/notifications/events/S/parameters/N/fixed_value/
Fixed parameter value for this particular event

Retrieving the value is denied if not administrative user

This sum is a part of a composite value which is modified as a whole.

This sum does not support direct modification.

This sum can assume the following values:

constant null	Null	Null
constant true	True	True
constant false	False	False
string	String	This string
number	Number	This number

Sample curl read command (note that :event and :event_parameter_index are URL template arguments):

curl --digest -u admin:1234 -H "Accept: application/json" "http://192.168.0.100/restapi/script/notifications/events/:event/parameters/:event_parameter_index/fixed_value/"

⇒

null

Sample CLI read command (note that event and event_parameter_index are variables):

uom get "script/notifications/events/${event}/parameters/${event_parameter_index}/fixed_value"

⇒

true

Browse more samples

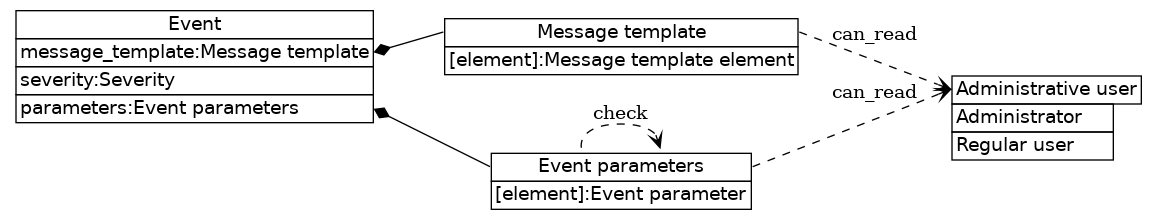

Events: Event

object	script/notifications/events/S/
Event template

This object is a part of a composite value which is modified as a whole.

This object contains the following items:

message_template	Message template
severity	Severity
parameters	Event parameters

Sample requests read command (note that _event is a variable):

print(requests.get('http://192.168.0.100/restapi/script/notifications/events/'+_event+'/',auth=auth,headers=headers).json())

⇒

{'severity': 5, 'message_template': ['no longer running a script function at boot since the function no longer exists in the script source'], 'parameters': {}}

Sample JS request read command (note that _event is a variable):

request.get({url:"script/notifications/events/"+_event+"/"},function(error,response,body) {console.log(body)});

⇒

Browse more samples

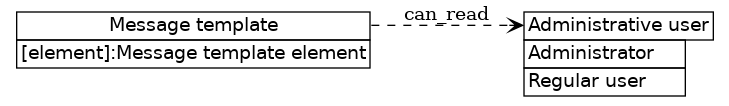

Message template

array	script/notifications/events/S/message_template/
Template for human-readable message generation

Retrieving the value is denied if not administrative user

This array is a part of a composite value which is modified as a whole.

This array does not support direct modification.

This array contains Message template element elements.

Creating elements in this collection is not supported.

Sample curl read command (note that :event is a URL template argument):

curl --digest -u admin:1234 -H "Accept: application/json" "http://192.168.0.100/restapi/script/notifications/events/:event/message_template/"

⇒

[0,":",1," [",2,"] (",3,") failed: ",4]

Sample uom library read command (note that _event is a variable):

print(uom.dump(uom.script.notifications.events[_event].message_template))

⇒

{0,":",1," [",2,"] (",3,") failed: ",4}

Browse more samples

Message template element

sum (variant)	script/notifications/events/S/message_template/N/
Element of human-readable message template

Retrieving the value is denied if not administrative user

This sum is a part of a composite value which is modified as a whole.

This sum does not support direct modification.

This sum can assume the following values:

string	String	Fixed string
number	Parameter	Index of message parameter to insert	event parameters[the value]

Sample requests read command (note that _event and _message_template_element_index are variables):

print(requests.get('http://192.168.0.100/restapi/script/notifications/events/'+_event+'/message_template/'+str(_message_template_element_index)+'/',auth=auth,headers=headers).json())

⇒

Sample CLI read command (note that event and message_template_element_index are variables):

uom get "script/notifications/events/${event}/message_template/${message_template_element_index}"

⇒

Browse more samples

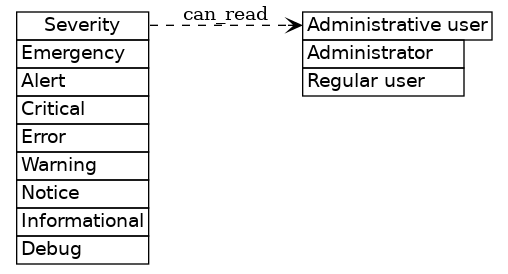

Severity

sum (enumerated number)	script/notifications/events/S/severity/
Severity rating assigned to the event

Retrieving the value is denied if not administrative user

This sum is a part of a composite value which is modified as a whole.

This sum does not support direct modification.

This sum can assume the following values:

constant 1	Emergency	Treat the event as an emergency
constant 2	Alert	Treat the event as an alert
constant 3	Critical	Treat the event as critical
constant 4	Error	Treat the event as an error
constant 5	Warning	Treat the event as a warning
constant 6	Notice	Treat the event as a notice
constant 7	Informational	Treat the event as informational
constant 8	Debug	Treat the event as debugging-related

Sample CLI read command (note that event is a variable):

uom get "script/notifications/events/${event}/severity"

⇒

Sample requests read command (note that _event is a variable):

print(requests.get('http://192.168.0.100/restapi/script/notifications/events/'+_event+'/severity/',auth=auth,headers=headers).json())

⇒

Browse more samples

Event parameters

array	script/notifications/events/S/parameters/
Additional data associated with the event

Retrieving the value is denied if not administrative user

This array is a part of a composite value which is modified as a whole.

This array does not support direct modification.

This array contains Event parameter elements.

Creating elements in this collection is not supported.

Sample CLI read command (note that event is a variable):

uom get "script/notifications/events/${event}/parameters"

⇒

Sample uom library read command (note that _event is a variable):

print(uom.dump(uom.script.notifications.events[_event].parameters))

⇒

Browse more samples

source	User script source
snippets	Script snippets
user_functions	User functions
user_function_ui_order	User function UI order
boot_handler	Script to start at startup, if any
boot_handler_legacy	Legacy startup handling
threads	Thread map
start	Start a script thread
stop	Stop a script thread
variables	Script external variables
traced	Script tracing
step_delay	Script step delay
step_time_limit	Script step time limit
notifications	Notifications
