DLI Controller API

object
The set of objects that comprise the controller's API

This is an automatically generated document describing the object model and containing samples interacting with it.

It is advised that you use the latest curl version to interact with the object model. In particular, some versions are known not to implement digest authentication correctly.Sample curl request path URI template arguments are string keys or 0-based integer indices of the entities involved. Template arguments need URL-encoding. Matrix URIs are supported.

The uom command-line utility is available in firmware versions 1.8.1.0 and above.Its sample request path shell variables are string keys or 0-based integer indices of the entities involved. Strings might need URL-encoding if they contain a slash ('/') or a percent sign ('').

The Python requests module samples assume the following preamble:

from __future__ import print_function
import requests
from requests.auth import HTTPDigestAuth
headers = {'accept': 'application/json','content-type': 'application/json','prefer': 'return=minimal','x-csrf': 'x'}
auth = HTTPDigestAuth('admin', '1234')

Python requests sample request path variables are string keys or 0-based integer indices of the entities involved. Template arguments need URL-encoding. Matrix URIs are supported.

The JavaScript request module samples assume that you require https://github.com/request/request or an API-compatible alternative like https://github.com/postmanlabs/postman-request and use the following preamble:

var request=require("request").defaults({baseUrl: "http://192.168.0.100/restapi/", auth: {user: "admin", pass: "1234", sendImmediately: false}, json: true, headers: {"X-CSRF": "x", "Prefer": "return=minimal" }});

Alternately you can supply the defaults enumerated on each request.JavaScript request sample path variables are string keys or 0-based integer indices of the entities involved. Template arguments need URL-encoding. Matrix URIs are supported.

The Lua uom module is available in firmware versions 1.8.1.0 and above.Lua uom module samples assume the following preamble:

local uom=require("uom")
local null=uom.null

Lua uom module sample request path variables are string keys or 1-based integer indices of the entities involved.

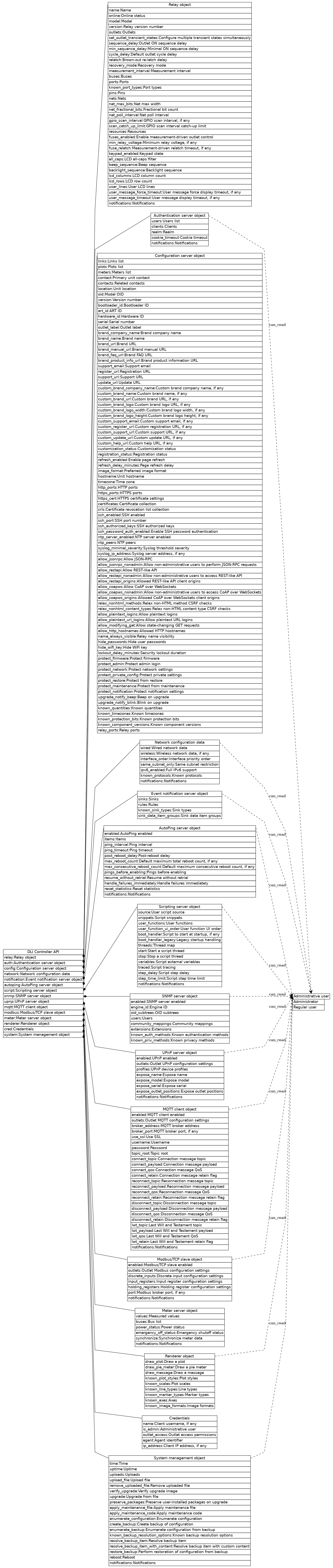

This object contains the following items:

relay	Relay object
auth	Authentication server object
config	Configuration server object
network	Network configuration data
notification	Event notification server object
autoping	AutoPing server object
script	Scripting server object
snmp	SNMP server object
upnp	UPnP server object
mqtt	MQTT client object
modbus	Modbus/TCP slave object
meter	Meter server object
renderer	Renderer object
cred	Credentials
system	System management object

Sample uom library write command:

uom=<...>

Sample uom library read command:

print(uom.dump(uom))

⇒

<...>

Browse more samples
